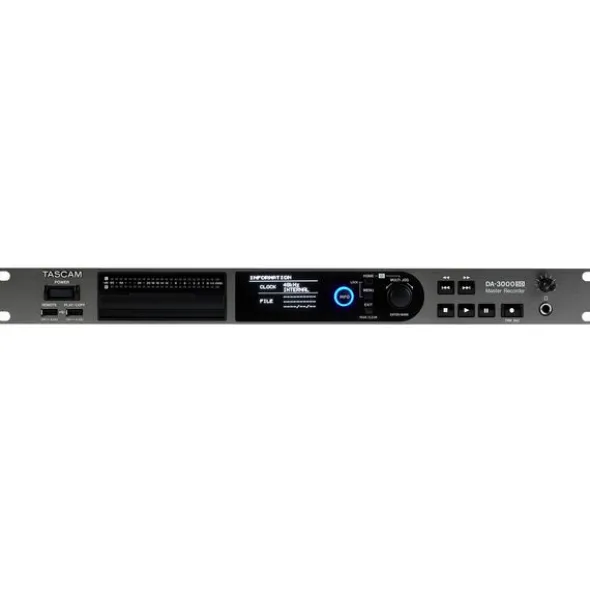

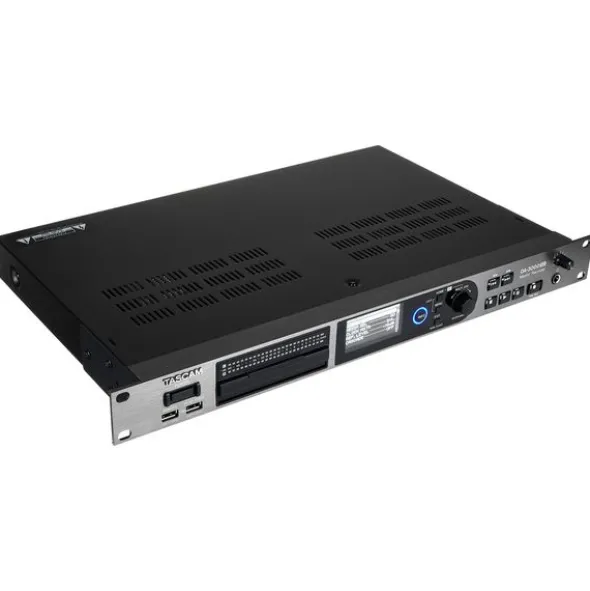

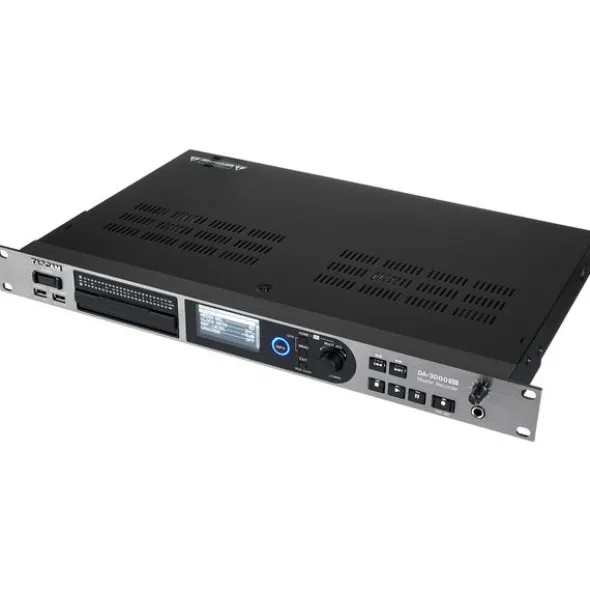

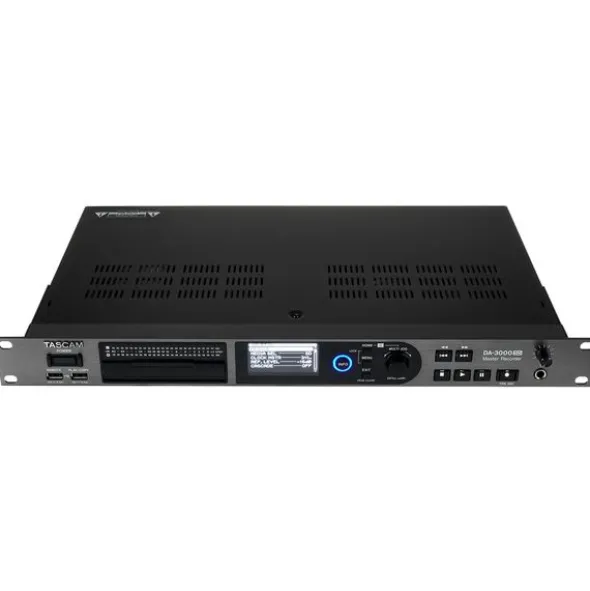

Tascam DA-3000SD

2-Channel DSD/PCM master recorder and AD/DA converter

• Sampling rates: DSD 5.6 MHz and PCM up to 192 kHz
• AD/DA direct mode for use as an AD/DA converter
• Temperature-compensated quartz oscillator (TCX0) with an accuracy of 1ppm
• Burr Brown converter (PCM1795)
• Cascading of several recorders possible

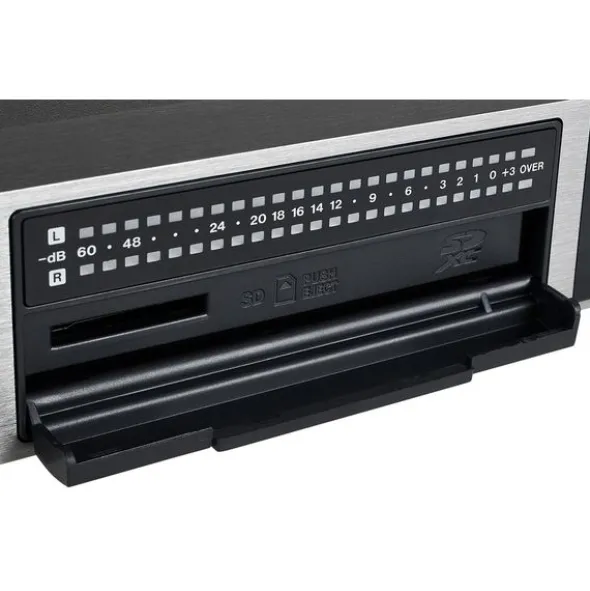

• Use of SDXC cards up to 512 GB possible

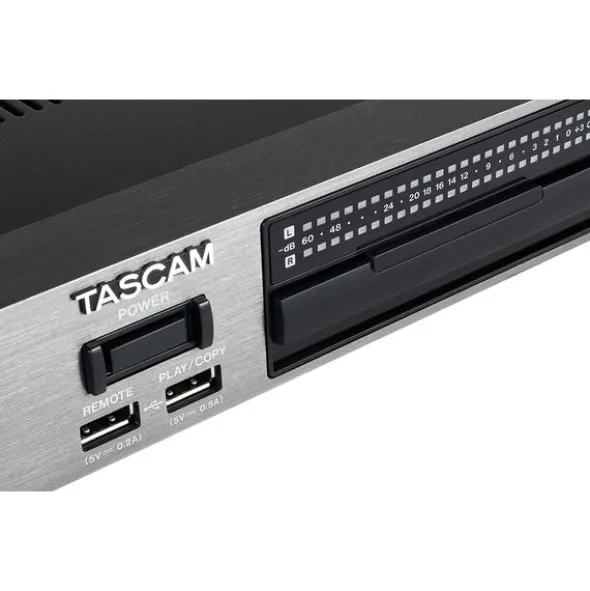

• 24 Segment LED level indicator

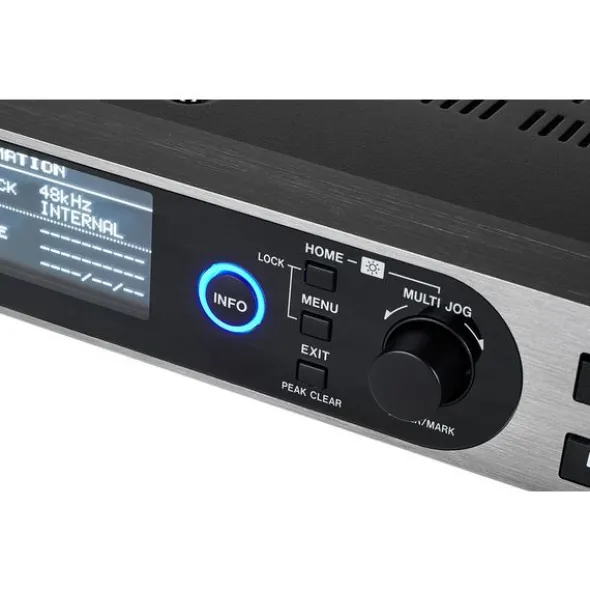

• OLED Display
• Marker function
• Control panel lock function
• Connection for a USB keyboard for device control
• Adjustable output level
• Format: 19″ / 1 U
• Dimensions (W x H x D): 483 x 45 x 305 mm
• Weight: 4.1 kg

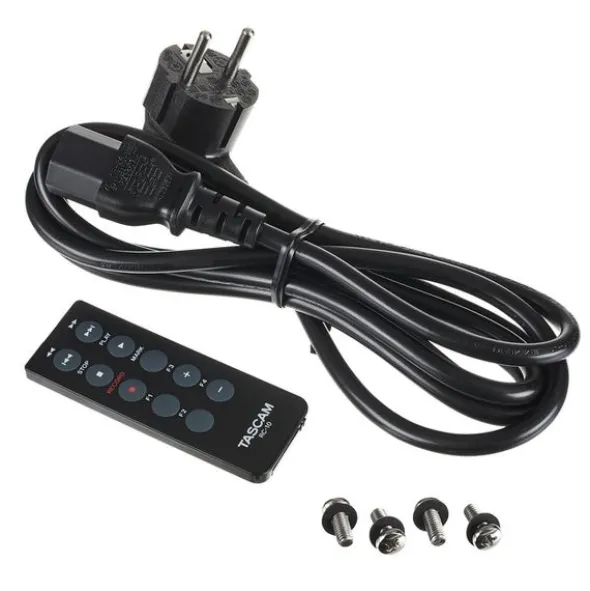

• incl. Tascam RC-10 remote control

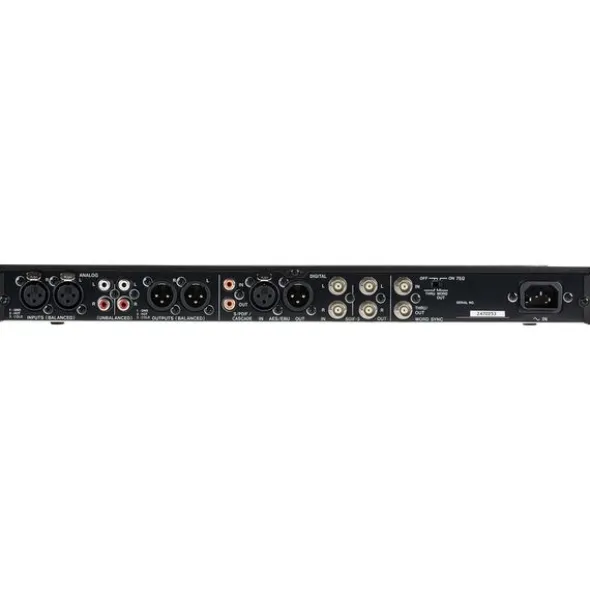

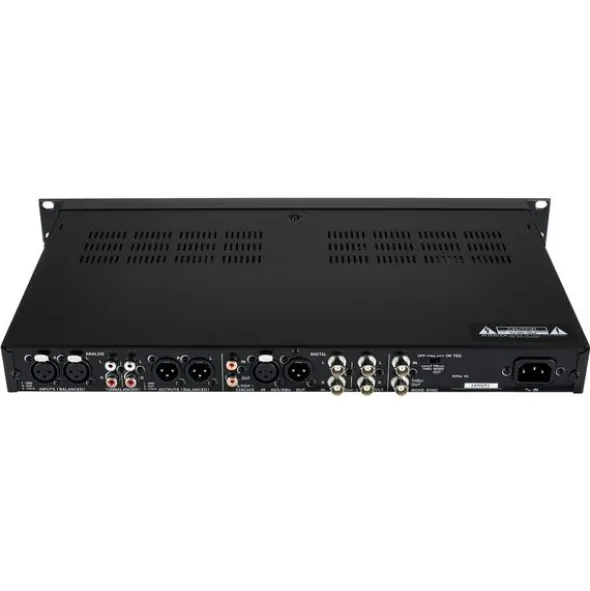

Connections:&

• Balanced analogue inputs and outputs: 3-pin XLR
• Unbalanced analogue inputs and outputs: RCA
• Digital input and output S/PDIF: RCA
• Digital input and output AES/EBU (3-pin XLR) or S/PDIF (cinch)
• DSD SDIF-3 and DSD-raw: BNC
• Wordclock In/Out/Thru: BNC
