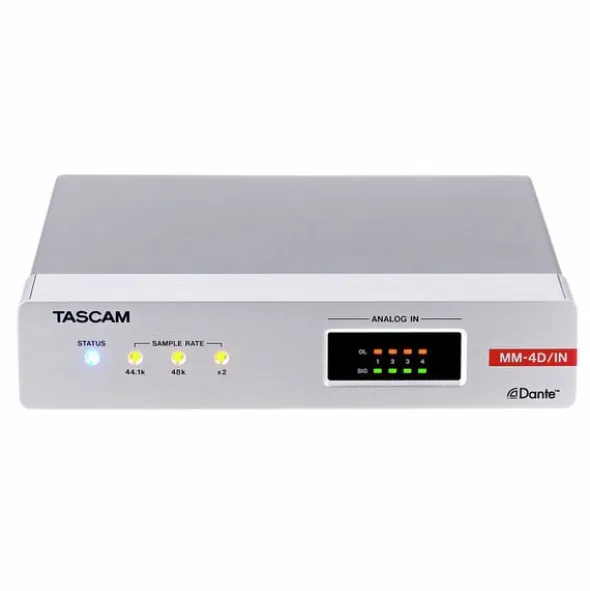

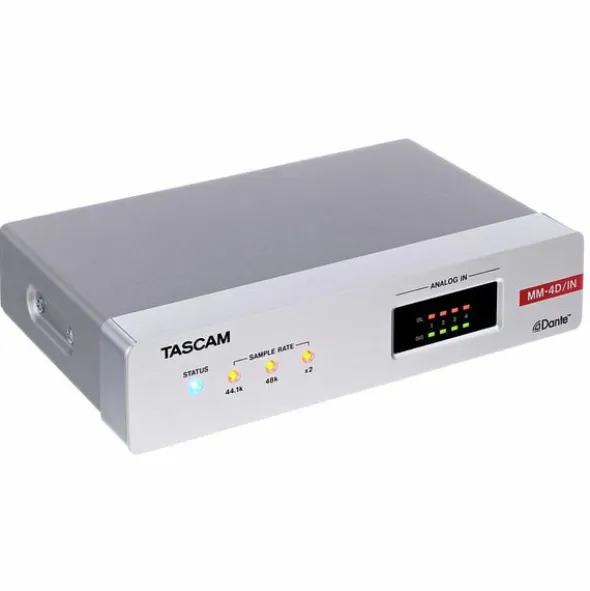

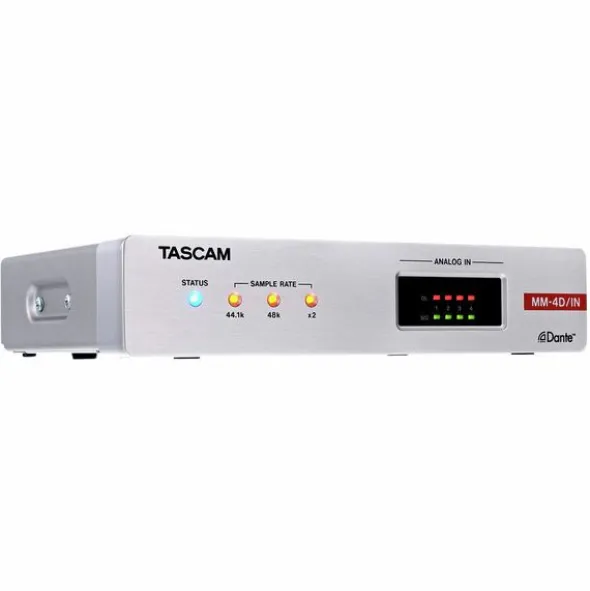

Tascam MM-4D-IN-E

4-Channel Analogue/Dante Converter

• With DSP mixer
• Max. 24-bit/96 kHz
• Transmission protocol: Dante
• 4 Mic/Line inputs
• Switchable +48 V phantom power
• Euroblock connectors for fixed installations
• Flexible routing via the application “Dante Controller”
• AES67 support

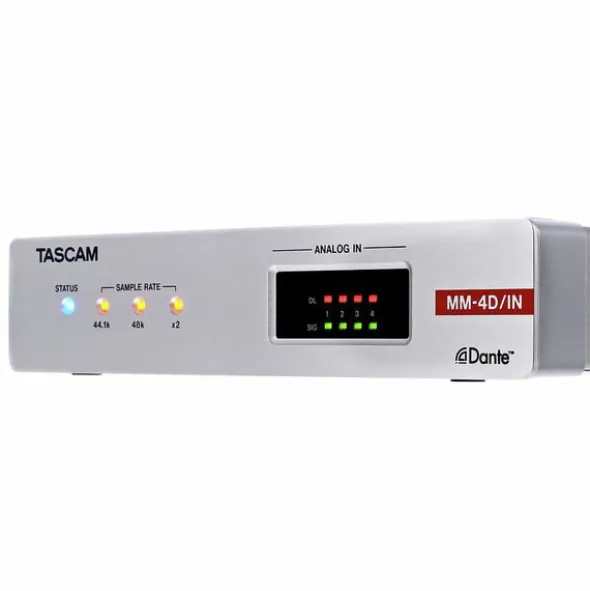

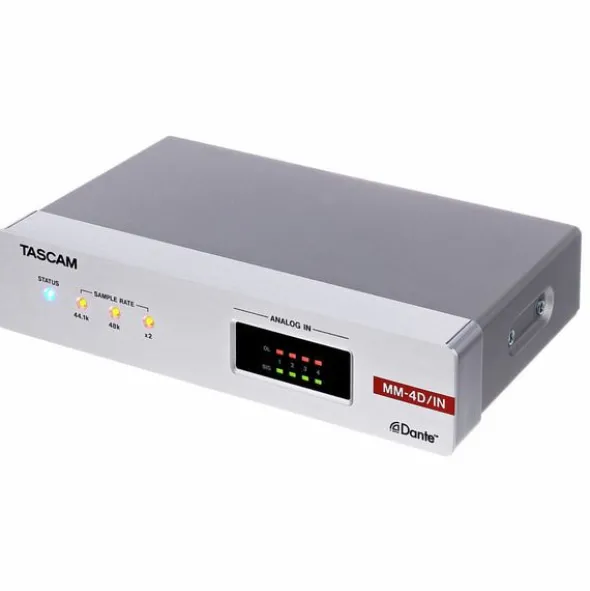

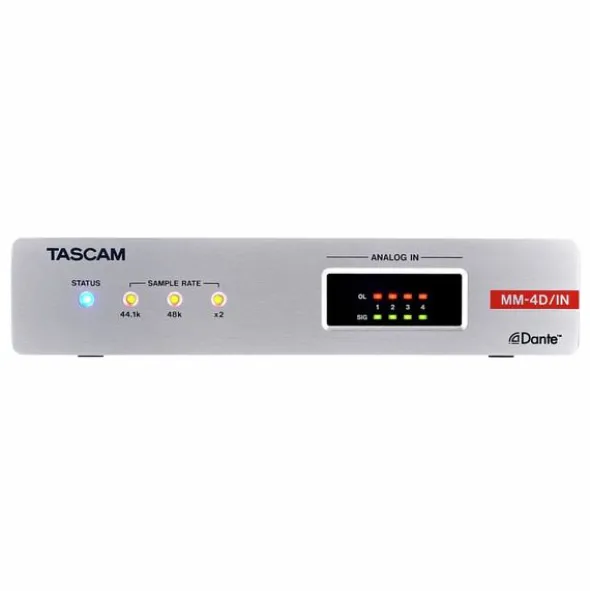

• LED for operating status and current sampling rate
• Signal and overload indicators for analogue input signals
• Inputs can be individually muted via GPI

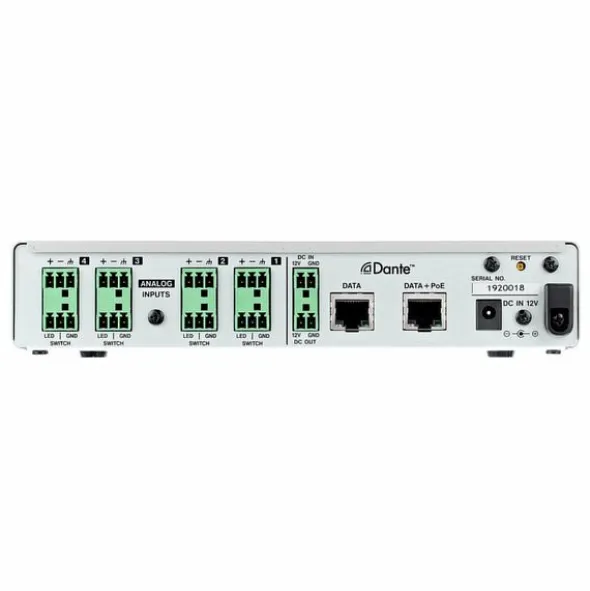

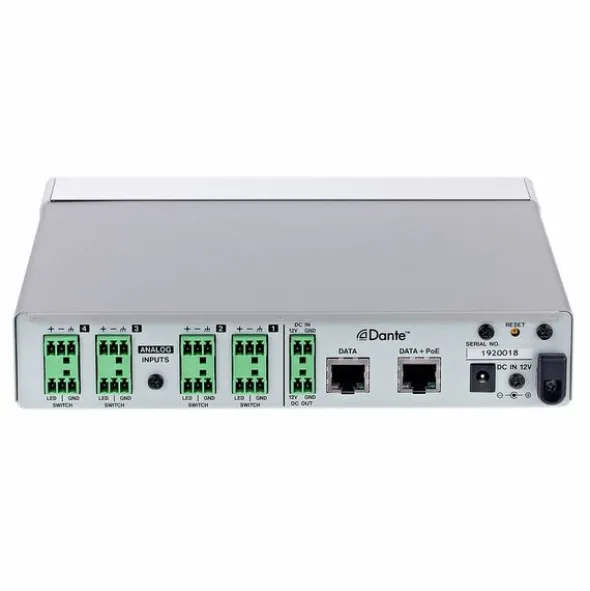

• Connections: Balanced Euroblock connectors, pitch: 3.81 mm , 2x RJ45 Ethernet 1000BASE-T
• Powered via PoE (Power-over-Ethernet) or a Tascam PS-P 51220E power supply (not included)
• Dimensions: 214 x 45 x 136 mm
• Weight: 0.885 kg

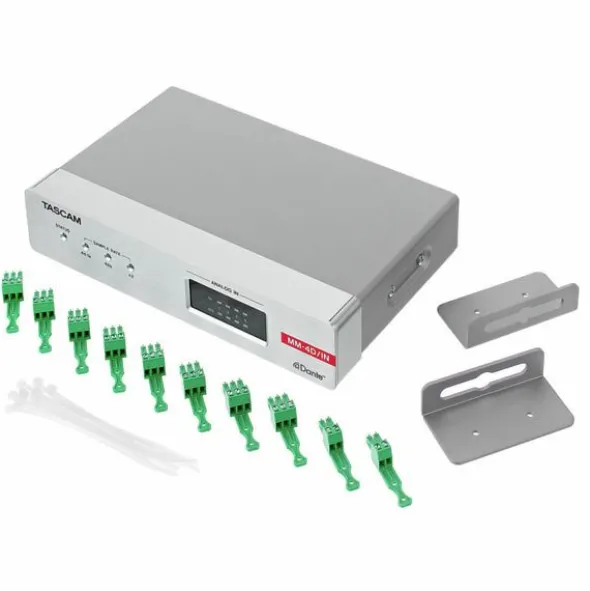

• Includes a mounting bracket for mounting the device, for example, to a table top

Disponível desdeSetembro 2020

número de artigo503129

unidade de venda1peça(s)

Amount Of Channels4

AD ConversionYes

DA ConversionNo

Max. Resolution Rate in Bits24 bit

Max. Sampling Rate in kHz96 kHz

S/PDIF ConnecorNo

AES/EBU ConnectorNo

ADATNo

Word clockNo

Number of analog inputs4

Number of Analog Outputs0

Headphone connectionNo

Special FeaturesDante
