Tight AV Dante 2-channel Output Phoenix

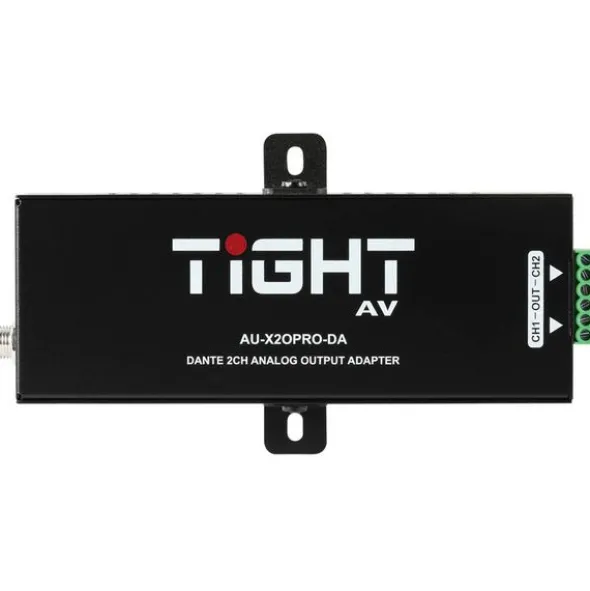

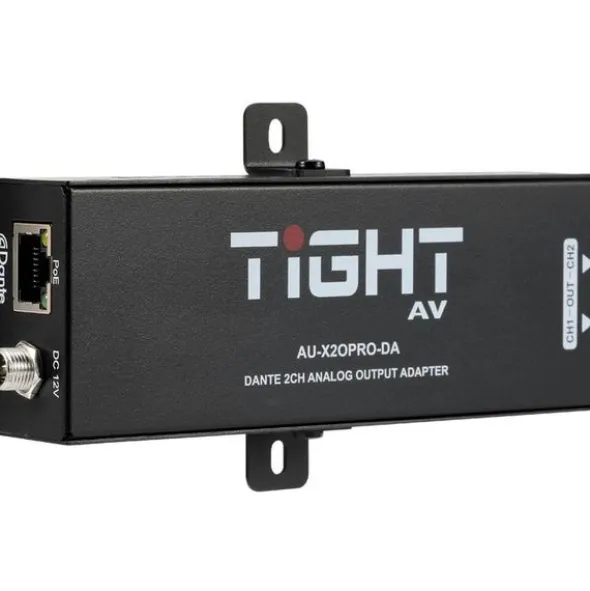

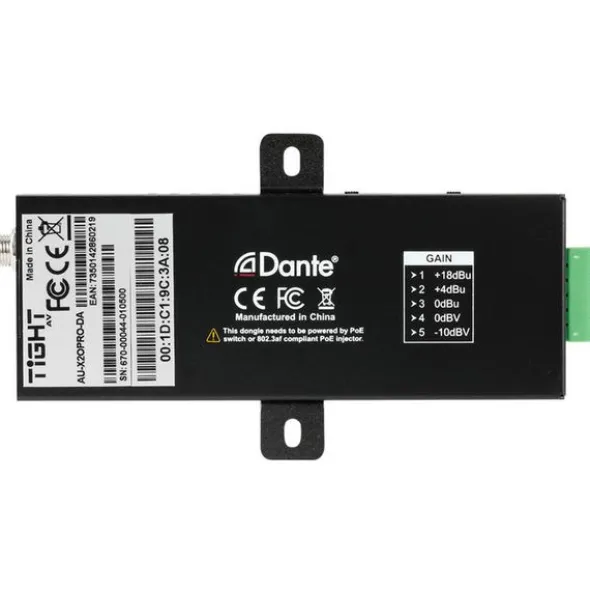

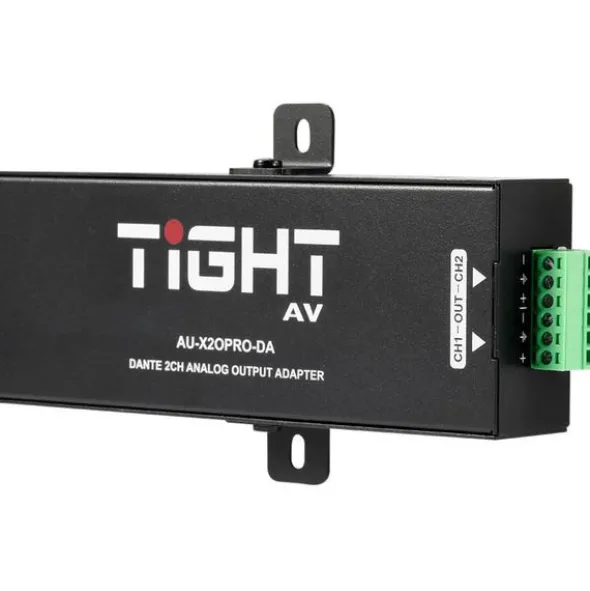

Dante 2-Channel Output Adapter

• For the output of analogue line signals from a Dante network
• With original Audinate Dante Ultimo chip
• 96 kHz / 24 Bit

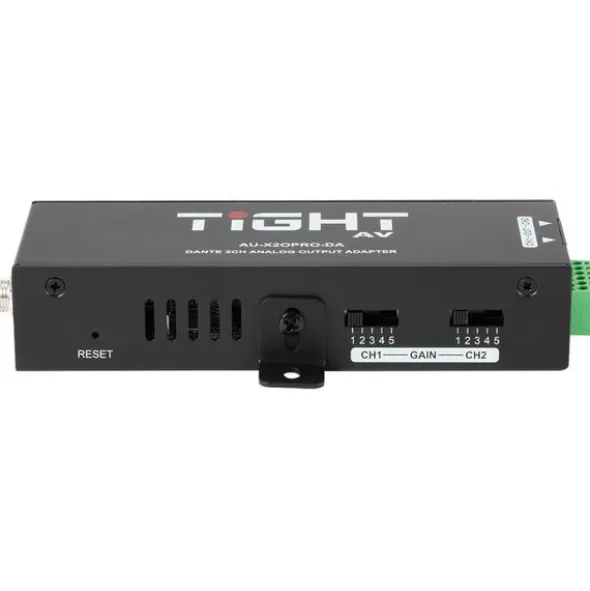

• Selectable maximum output level: +18 dBu / +4 dBu / 0 dBu / 0 dBV / -10 dBV
• Frequency range: 20 – 20,000 Hz (-/+0.5 dB)
• Output imepdance: 150 Ohm (balanced), 75 Ohm (unbalanced)
• Dynamic range: >100 dB
• Signal-to-noise ratio: 100 dB
• Total harmonic distortion: <0.01 % @ + 4 dBu
• Supports AES67 RTP
• Easy installation thanks to Phoenix analogue connections
• RJ45 metal plug with built-in LEDs
• Robust metal housing
• Requires POE (Power over Ethernet) for operation (Class 1 802.3af PoE) or 12V DC power supply (not included)
• Dimensions (W x H x D): 128 × 26 × 48 mm
• Weight: 0.195 kg

Disponível desdeAgosto 2025

número de artigo624289

unidade de venda1peça(s)

Amount Of Channels2

AD ConversionNo

DA ConversionYes

Max. Resolution Rate in Bits24 bit

Max. Sampling Rate in kHz96 kHz

S/PDIF ConnecorNo

AES/EBU ConnectorNo

ADATNo

Word clockNo

Number of analog inputs0

Number of Analog Outputs2

Headphone connectionNo

Network ProtocolDante

ConnectorRJ45

Width128 mm

Depth in mm48 mm

Height26 mm

Weight0,145 kg

Mounting Height0 U

19″ RackkitNo

Input Channels0

Output Channels2

Digital Inputs0

Digital Outputs0

Special FeaturesDante
