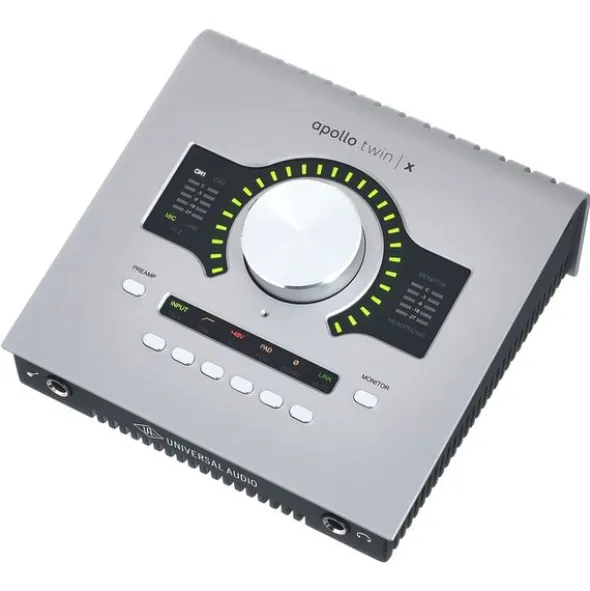

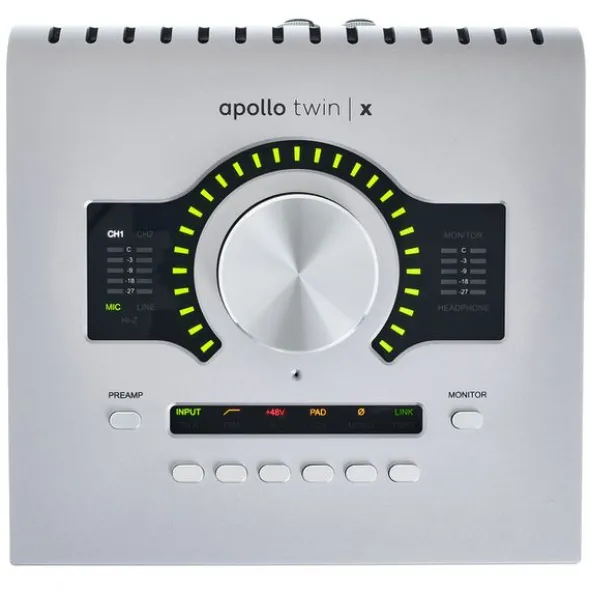

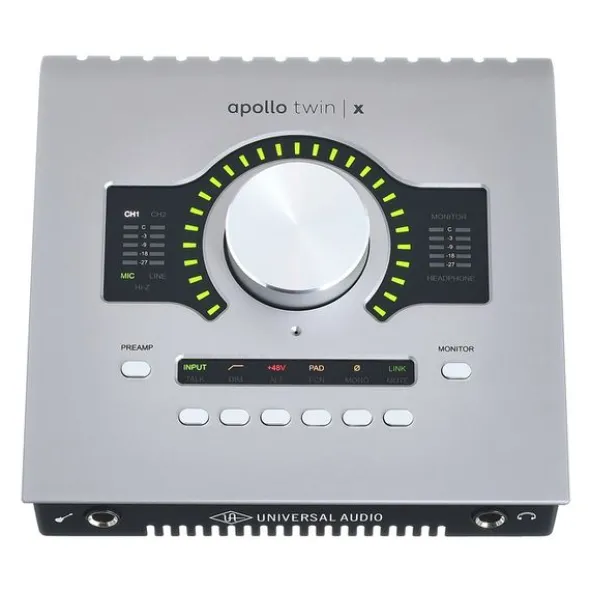

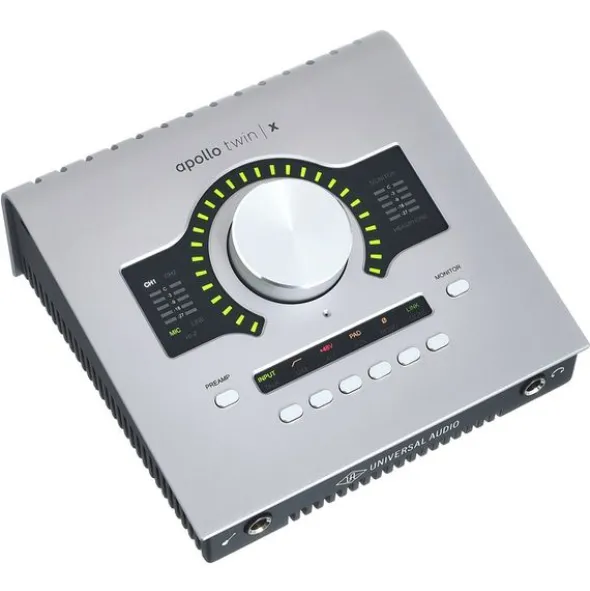

Universal Audio Apollo Twin X Quad Gen2 AC

10 x 6 Thunderbolt 3 Audio Interface

• With UAD-2 Quad processor
• 24 Bit / 192 kHz AD/DA converter
• 2 Unison microphone preamps
• Auto Gain function
• +48 V phantom power
• Built-in talkback microphone
• Dynamic range: 127 dB

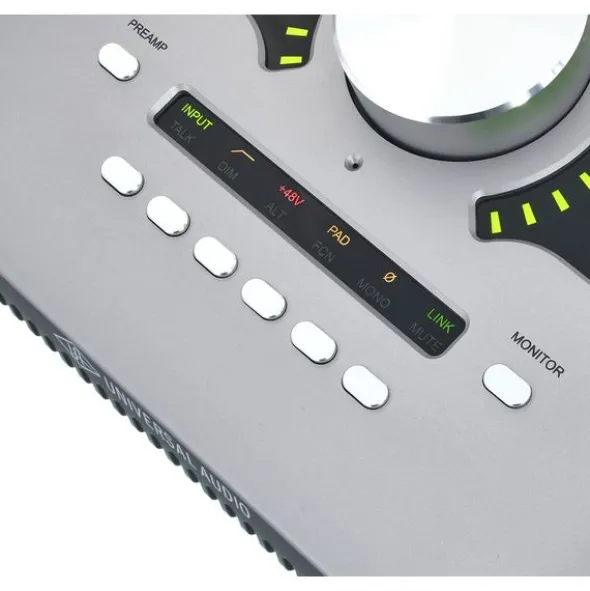

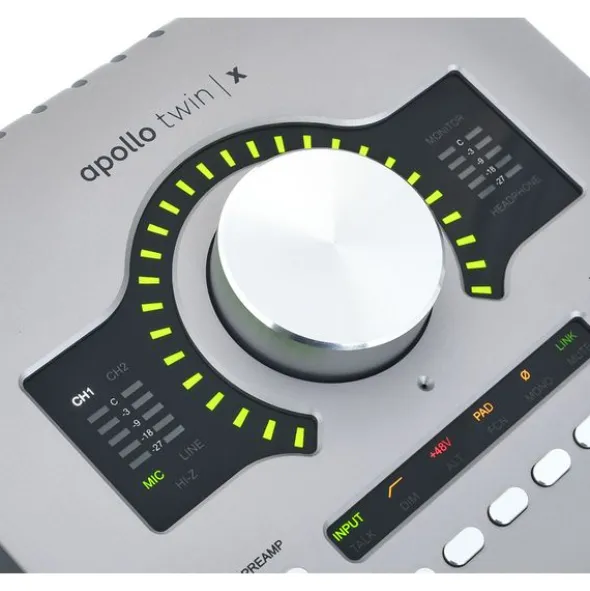

• Monitor functions with controls for mono, mute, DIM and ALT
• Design: Desktop
• For Mac OS and Windows

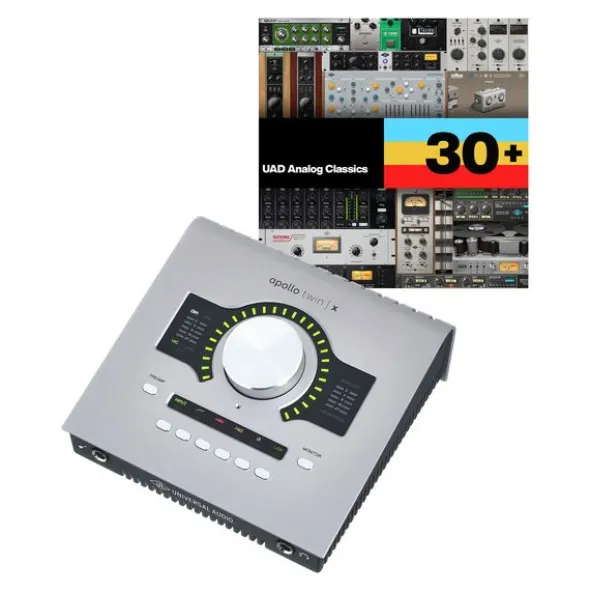

• Includes UAD Analog Classics Plug-in Bundle

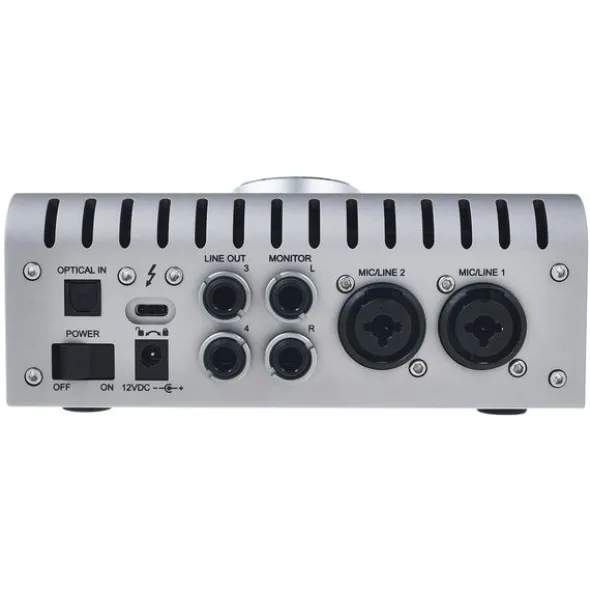

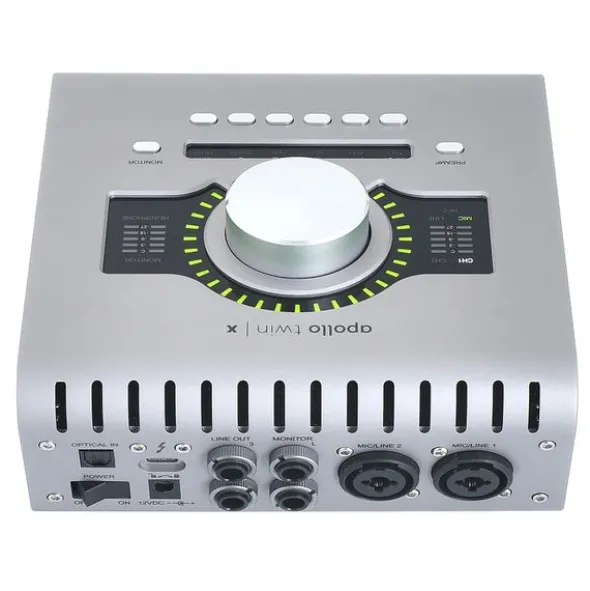

Connectors:

• Microphone/line combo inputs: 2 x XLR / 6.3 mm jack

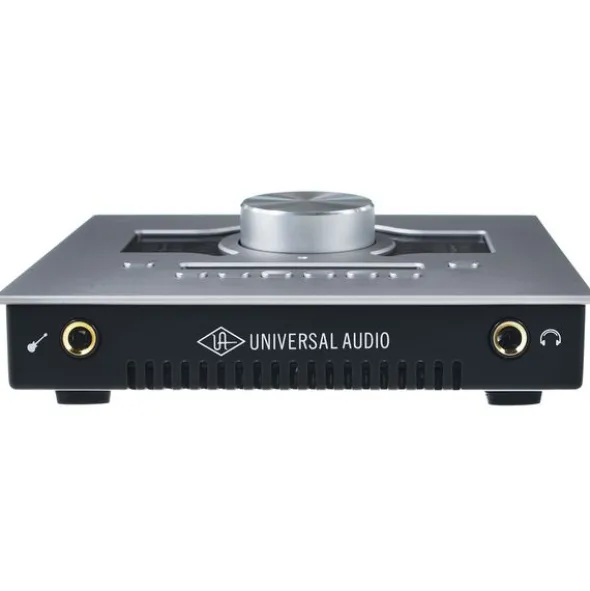

• Hi-Z instrument input: 6.3 mm jack
• Line outputs: 2 x 6.3 mm jack
• Monitor outputs: 2 x 6.3 mm jack
• ADAT/SPDIF optical input
• Stereo headphone output: 6.3 mm jack
• Thunderbolt 3 connection (Thunderbolt cable not included)

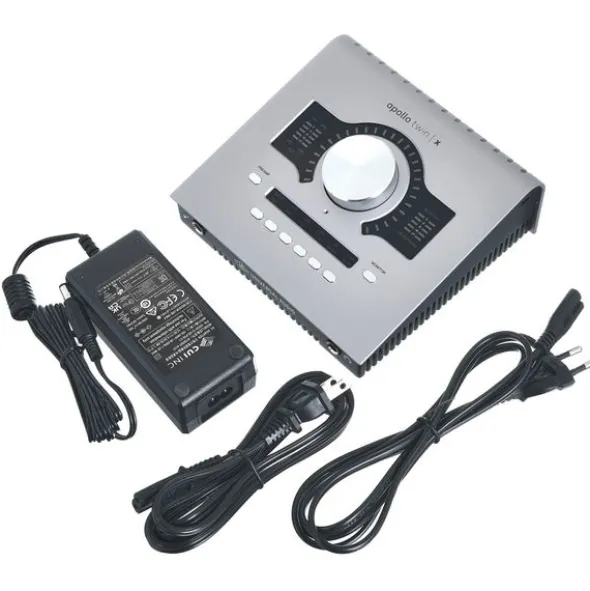

• Input for external power supply

Disponível desdeOutubro 2024

número de artigo600584

unidade de venda1peça(s)

Recording / Playback Channels10×6

Number of Mic Inputs2

Number of Line Inputs2

Number of Instrument Inputs1

Number of Line Outputs4

Headphone Outs1

Phantom PowerYes

Number of S/PDIF Connectors1

Number of ADAT Connectors1

AES/EBU Connectors0

Number of MADI Connectors0

Ethernet0

Other ConnectorsNone

MIDI ConnectorsNo

Word ClockNo

Max. Sampling Rate in kHz192 kHz

Max. Resolution Rate in Bits24 bit

Bus-PoweredNo

Incl. Power SupplyYes

Windows Thunderbolt driverYes

Thunderbolt Version3

Width in mm160 mm

Depth in mm149 mm

Height in mm66 mm
