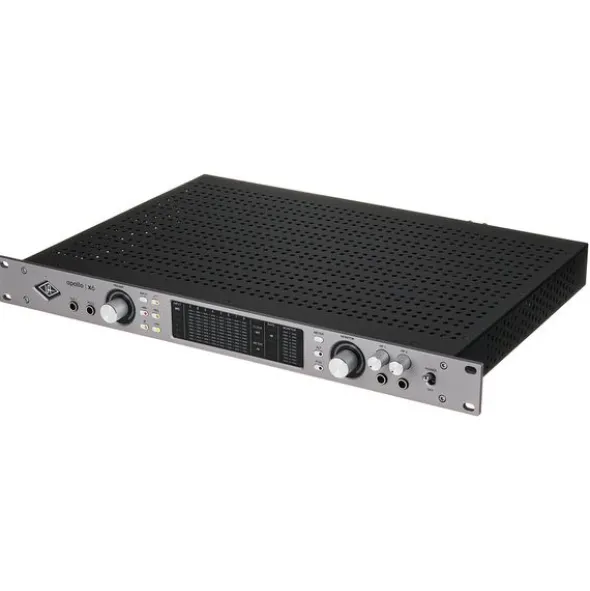

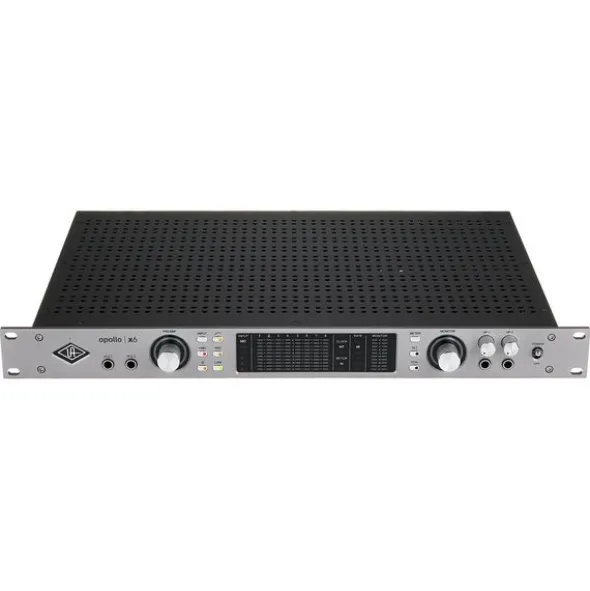

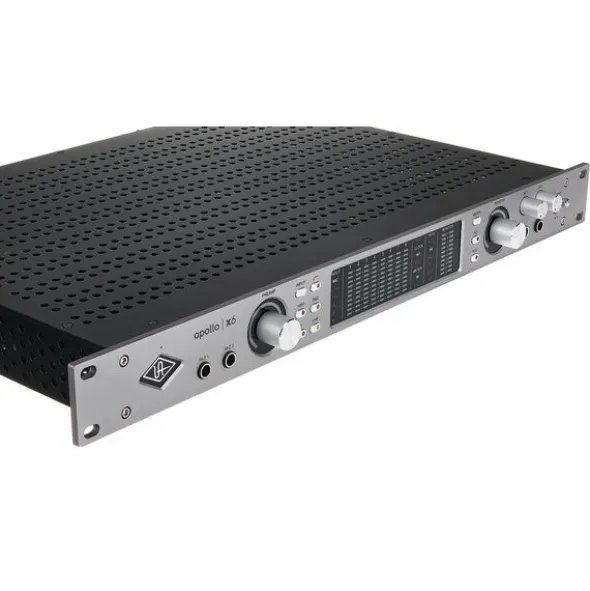

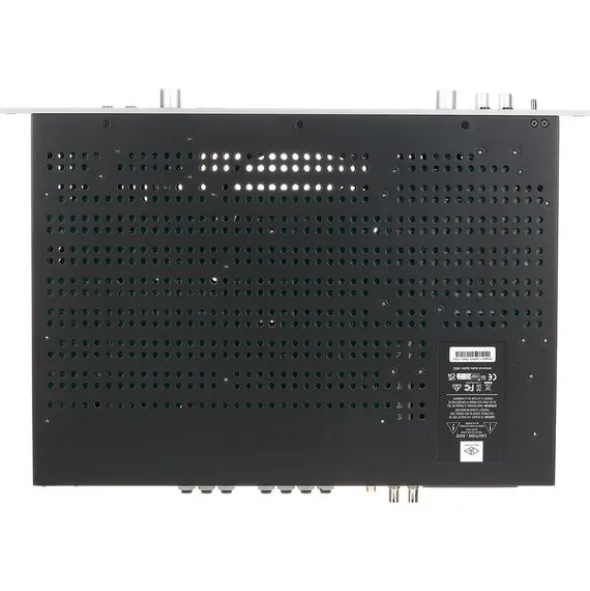

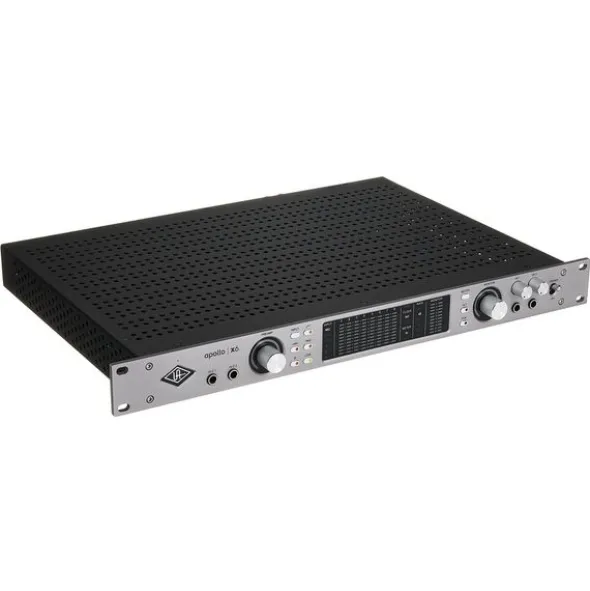

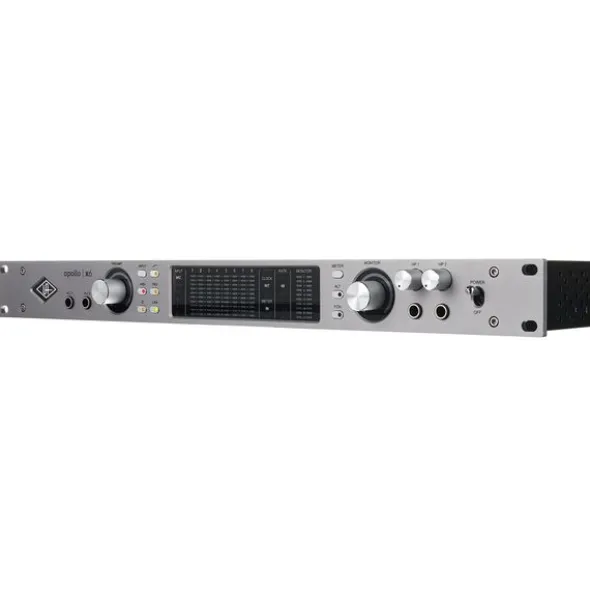

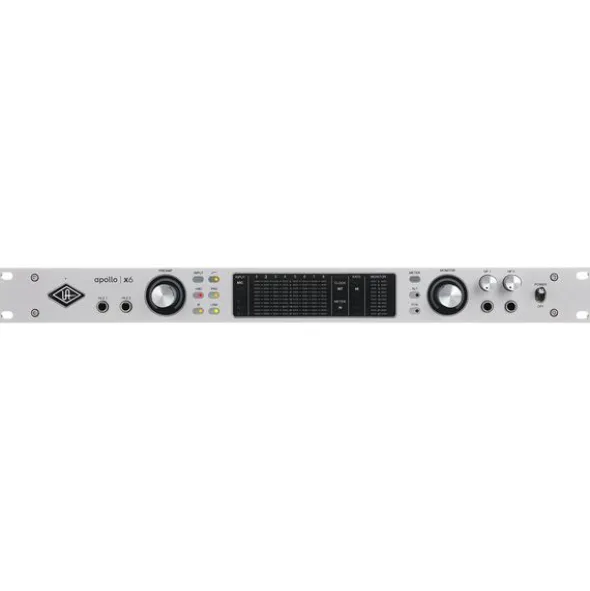

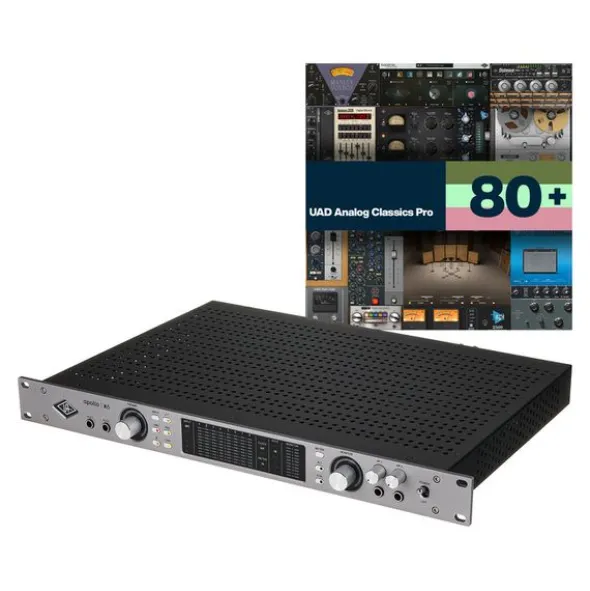

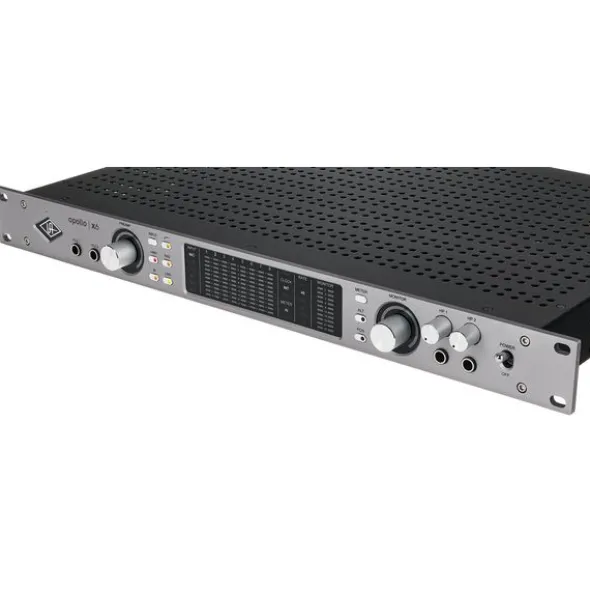

Universal Audio Apollo x6 Gen2 AC Pro

16 x 22 Thunderbolt 3 Audio Interface

• 24 Bit / 192 kHz
• 6-Core SHARC DSP for internal UAD real-time processing
• 2 Unison microphone preamps
• Auto Gain function
• +48 V phantom power
• Pad
• Low-cut
• Phase reverse
• Switch for monitor switching
• Dim or mono assignable function button
• LED meter
• Built-in talkback microphone
• Support for surround formats up to 5.1 with speaker calibration and downmix
• Dual Crystal Clocking for a low-jitter environment and pure artefact-free recordings and stable stereo imaging
• Includes UAD Analog Classics Pro Plug-in Bundle for Mac/Windows
• Compatible with Thunderbolt 2 with optional Thunderbolt 2 to 3 adapter (not included)
• Up to 4 Apollos cascadable with Thunderbolt connection
• Format: 19″ / 1 U

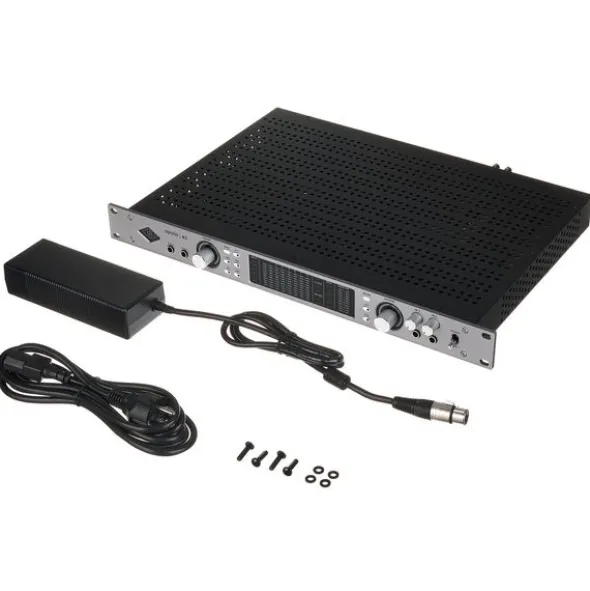

• Includes external power supply

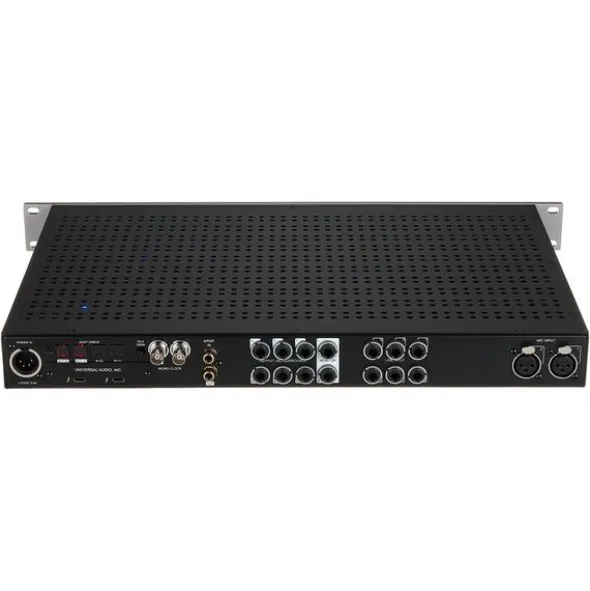

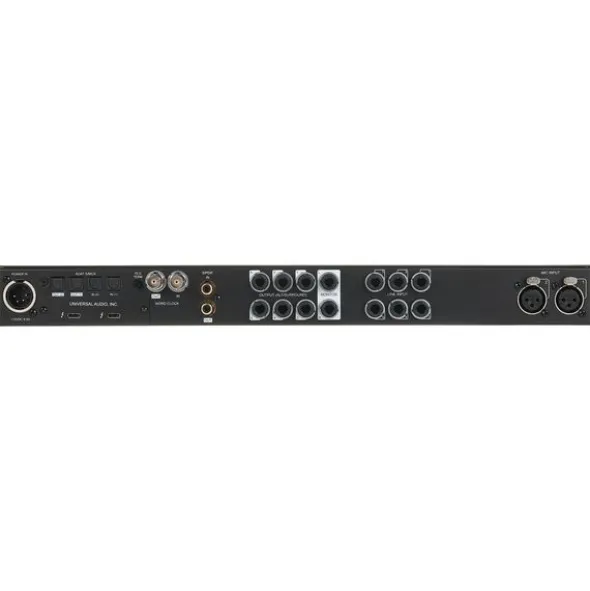

Connectors:

• 2 Microphone inputs XLR
• 2 Hi-Z inputs: 6.3 mm jack
• 6 Line inputs: 6.3 mm jack
• 2 Monitor outputs: 6.3 mm jack
• 6 Line outputs: 6.3 mm jack
• S/PDIF input and output: coaxial
• 2 ADAT inputs and outputs
• Word Clock input and output: BNC
• 2 Headphone connections: 6.3 mm stereo jack
• 2 Thunderbolt 3

Disponível desdeOutubro 2024

número de artigo598599

unidade de venda1peça(s)

Recording / Playback Channels16×22

Number of Mic Inputs2

Number of Line Inputs6

Number of Instrument Inputs2

Number of Line Outputs8

Headphone Outs2

Phantom PowerYes

Number of S/PDIF Connectors1

Number of ADAT Connectors2

AES/EBU Connectors0

Number of MADI Connectors0

Ethernet0

Other ConnectorsNone

MIDI ConnectorsNo

Word Clock1xIn, 1xOut

Max. Sampling Rate in kHz192 kHz

Max. Resolution Rate in Bits24 bit

Bus-PoweredNo

Incl. Power SupplyYes

Windows Thunderbolt driverYes

Thunderbolt Version3

Width in mm483 mm

Depth in mm308 mm

Height in mm44 mm
