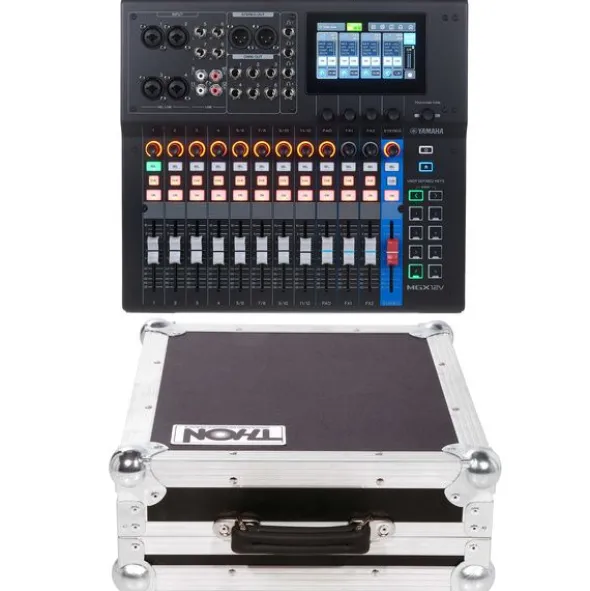

Yamaha MGX12V BK Case Bundle

Bundle offer comprising

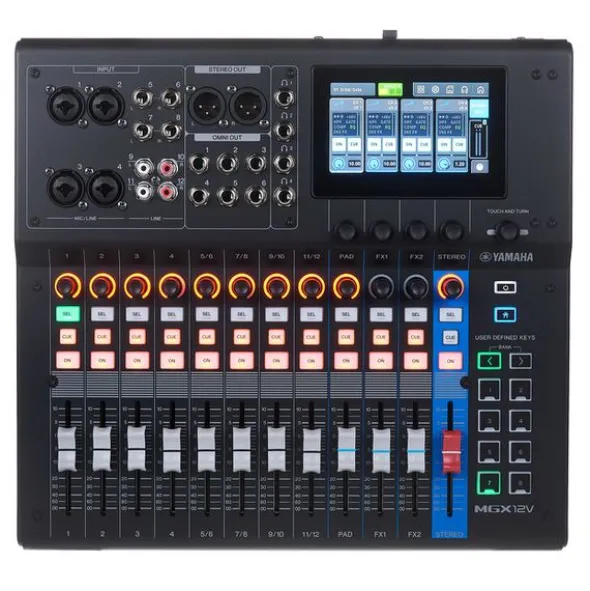

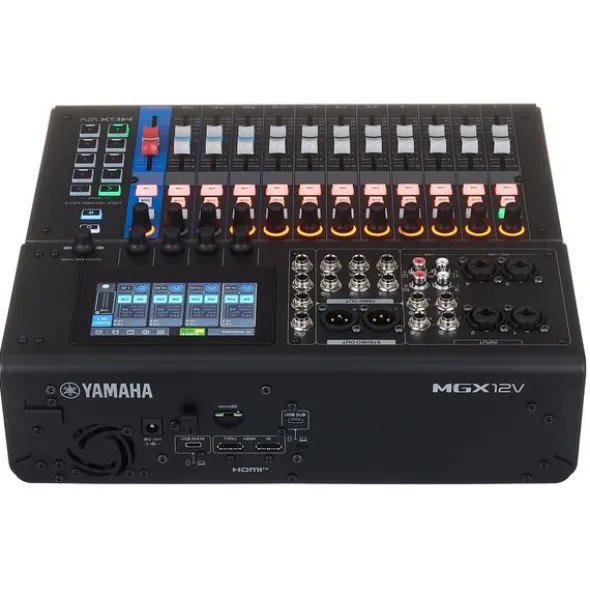

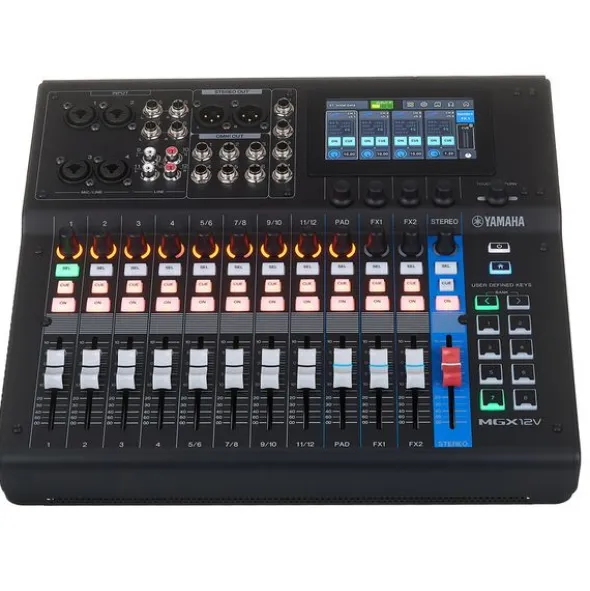

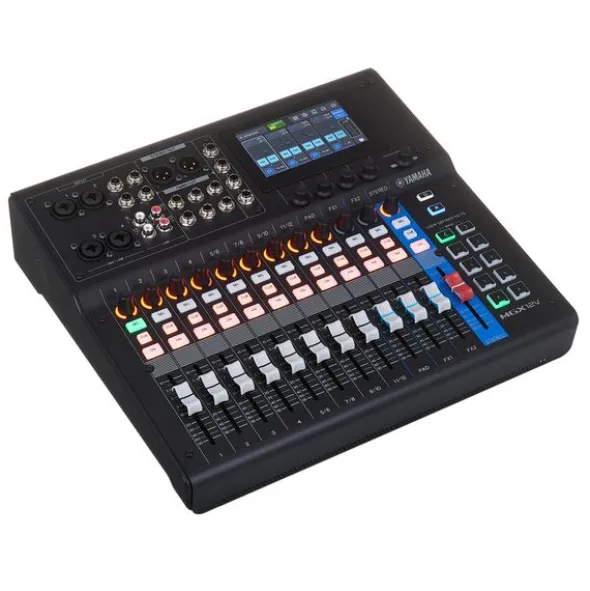

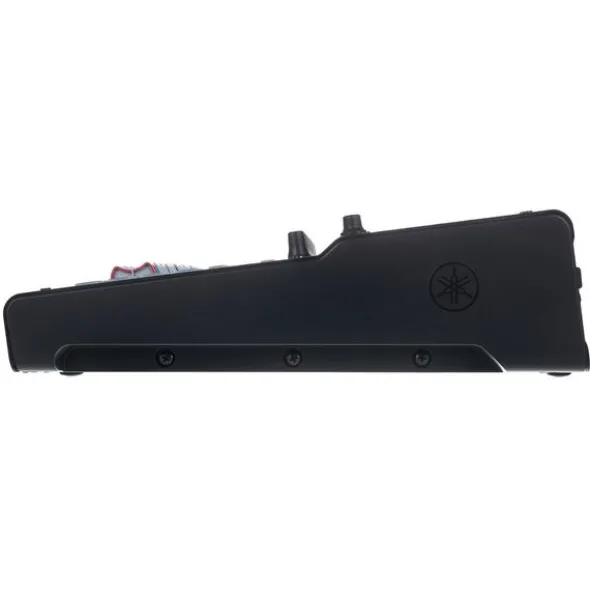

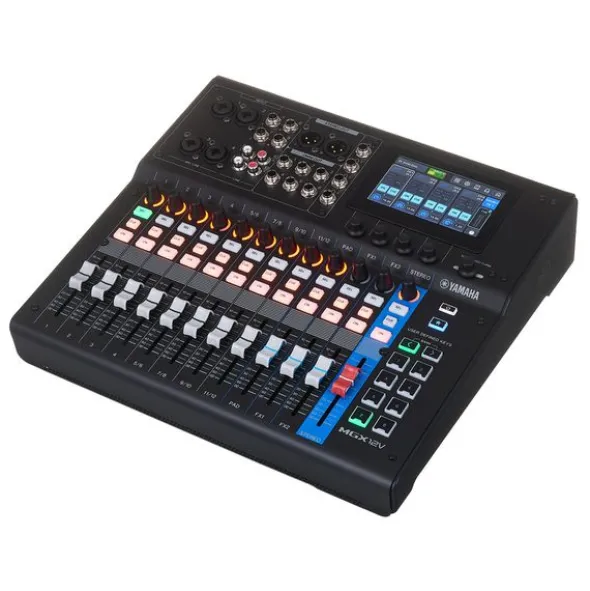

Yamaha MGX12V BK

Compact 12-Channel Digital Mixer

• For live applications, streaming, audio production and professional recording
• HDMI to USB video/audio input with recording function and real-time HDMI pass-through
• Buses: 8 x Mix + 2 x FX + 1 x CUE + 1 x stereo

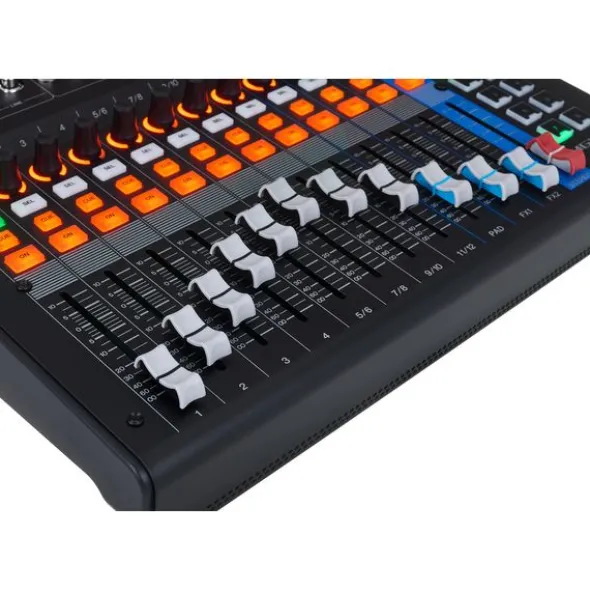

• 11 + 1 faders (non-motorised)

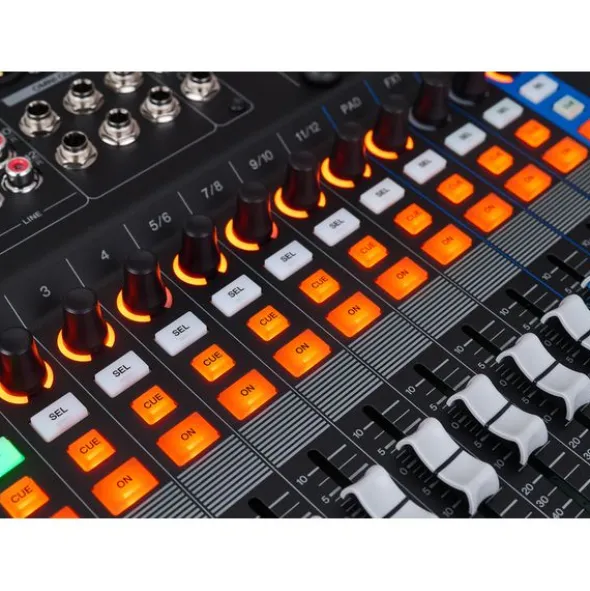

• Per channel rotary control, select, cue and on buttons

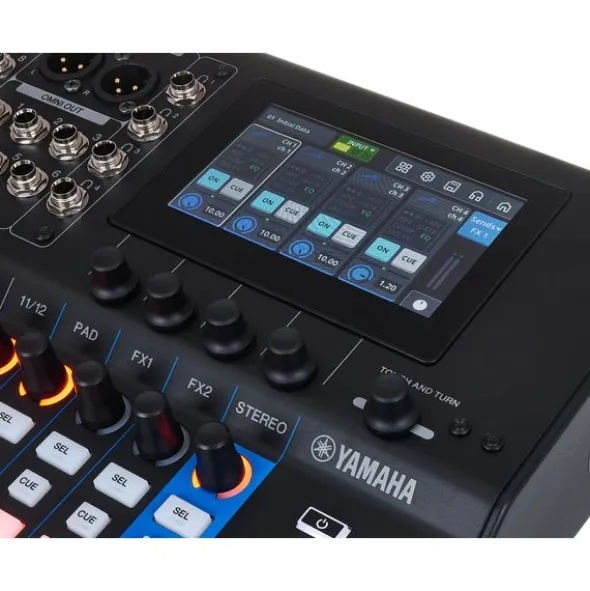

• 4.3″ touchscreen with five rotary controls
• Eight assignable function keys in banks
• Built-in DSP processor for latency-free monitoring
• Bluetooth 5.0, A2DP
• Built-in USB audio interface
• MicroSD card slot
• 16-track recording / 2-track playback (24-bit / up to 96 kHz)
• Functions: Auto Gain, Clip Safe, Simple/Standard Mode, Scene Recall
• Dimensions (W × H × D): 335 × 96 × 319 mm
• Weight: 4.46 kg
• Colour: Black

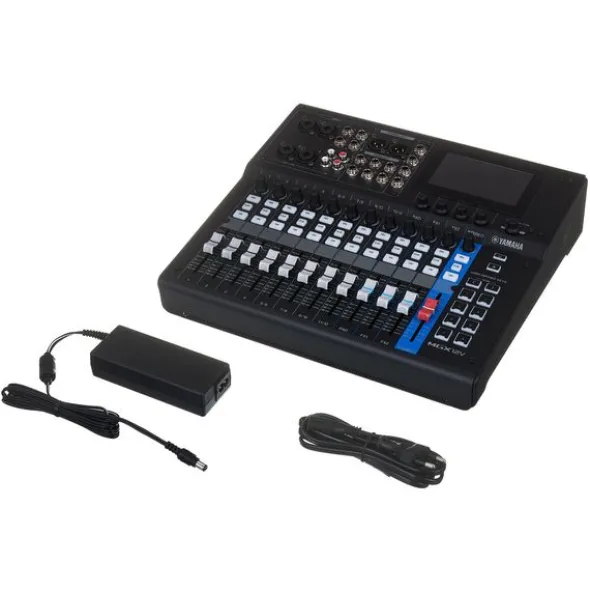

• Includes external 16 V power supply (PA-300) as well as Cubase AI, WaveLab Cast, Basic FX Suite and Steinberg Plus

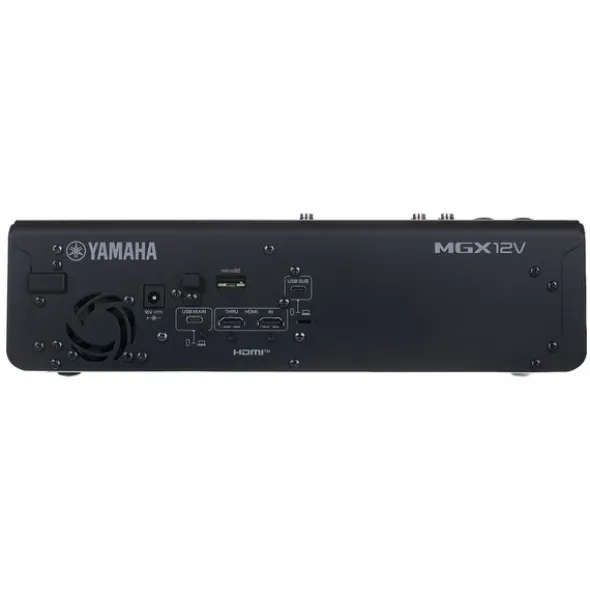

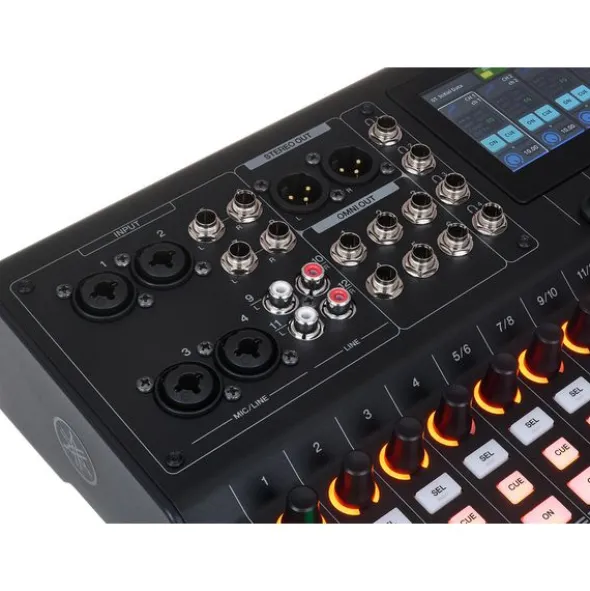

Connections:

• Microphone/line inputs: Four XLR/6.3 mm combo jacks
• Line inputs: Four 6.3 mm jacks
• Line inputs: Four RCA (2 x L/R)
• Line outputs: Two XLR, 6 x 6.3 mm jack
• Four stereo headphone outputs: 6.3 mm jack
• HDMI In
• HDMI Thru
• Two USB-C ports
• Input for external power supply

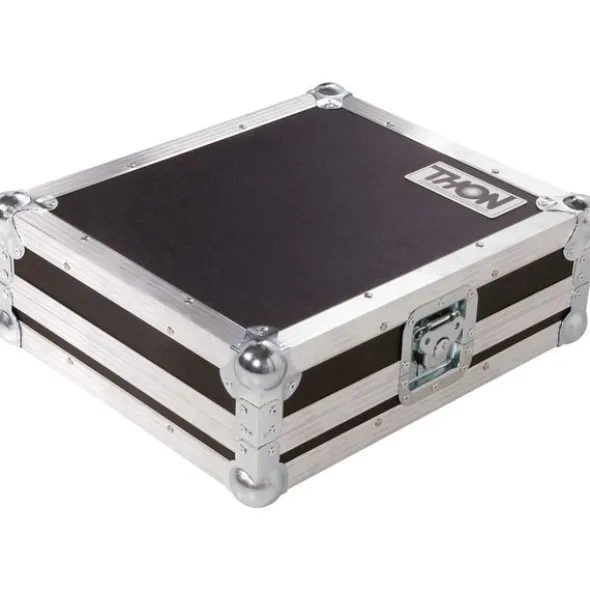

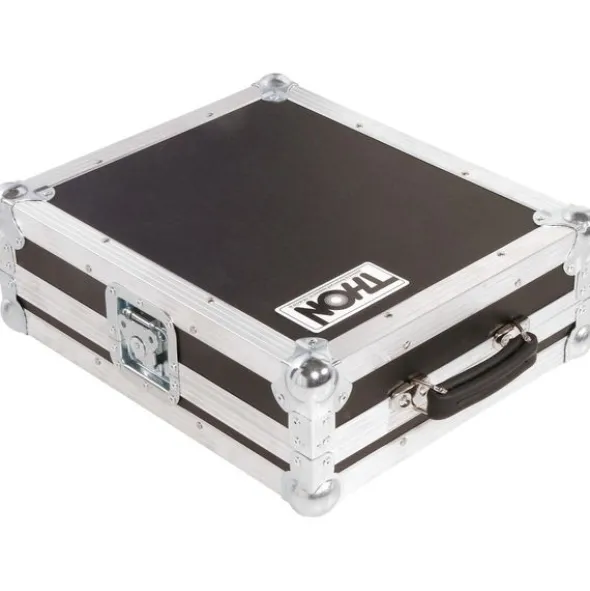

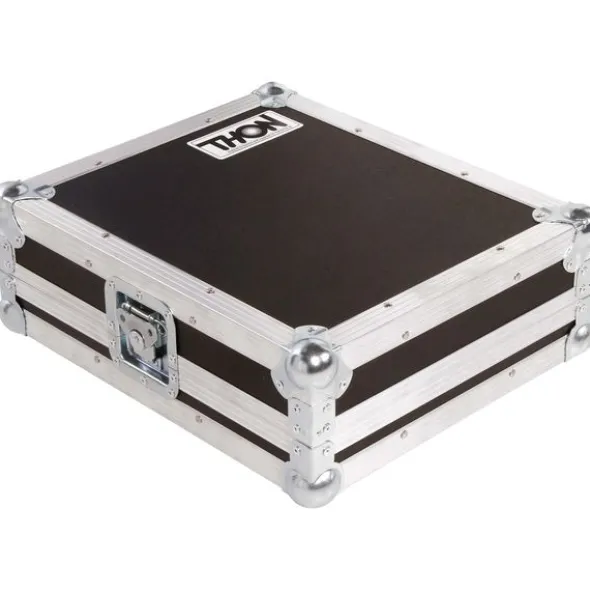

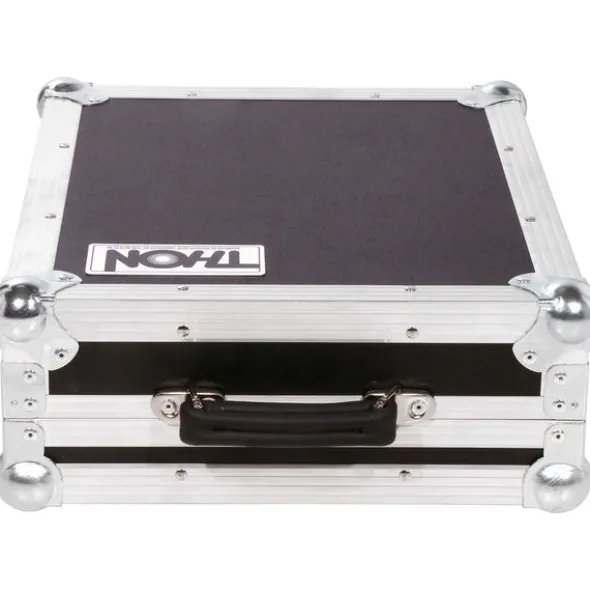

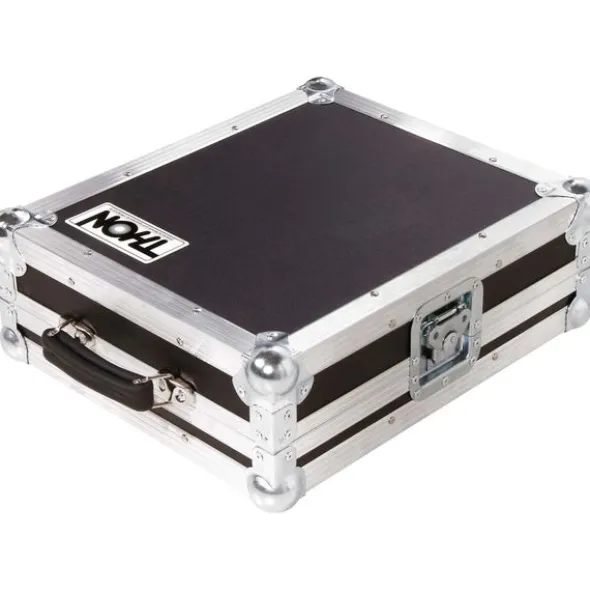

Thon Case Yamaha MGX12 / 12V

Mixer Case

• Made of 6.5 mm polyboard
• Aluminium edge: 30 x 30 mm
• Four medium-sized L-corners

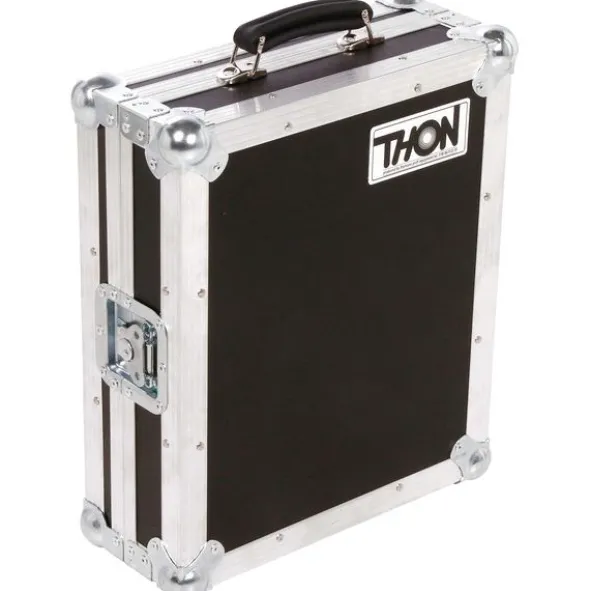

• One leather handle
• Two medium-sized butterfly latches
• Four medium-sized, rounded ball corners
• Four medium-sized rounded ball corners with L-corner

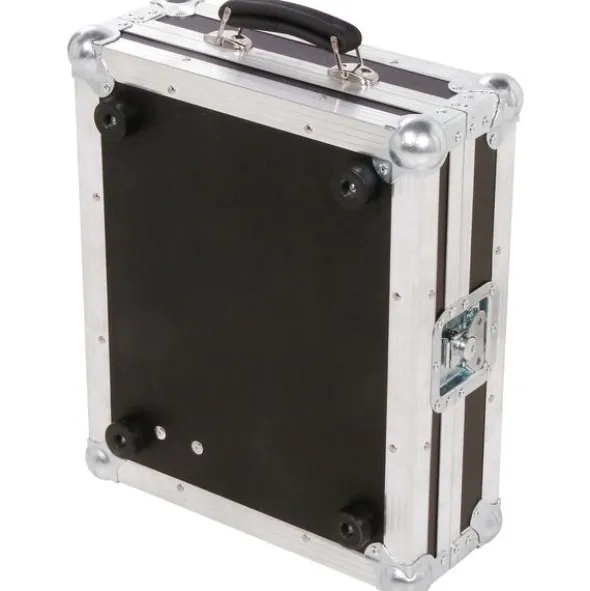

• Four rubber feet 38 x 20 mm

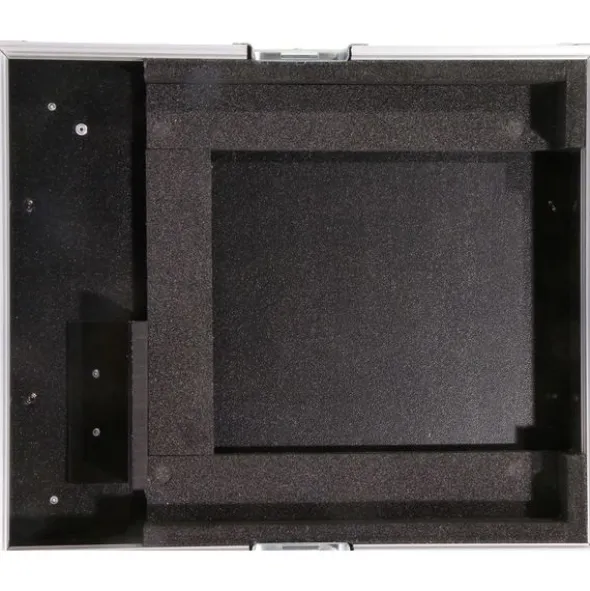

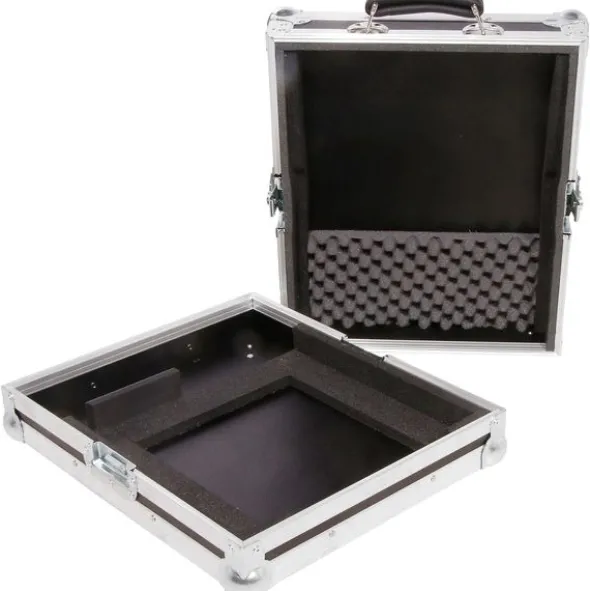

• Foam padding
• 10 cm cable duct behind the device
• Mixer can be operated from the lower part
• Dimensions: (W x D x H) 510 x 407 x 178 mm
• Weight: 5 kg
• Colour: Black matte
• Made in Germany

Disponível desdeMarço 2026

número de artigo640532

unidade de venda1peça(s)

Max.number of input channels12

Microphone Inputs4

Analog Line Inputs8

Analog Line Outputs8

Analog in/ out with plug-in card expandableNo

Digital in-/ outputs expandableNo

Word ClockNo

MotorfaderNo

Computer interfaceUSB

MIDI-interfaceNo

User InterfacePhysical

Number of faders12

DSP Input channels0

DSP Output Channels0

Busses8

Number of Microphone Inputs4

Number of Mono Line Inputs8

Number of Stereo Line Inputs2

Physical outputs8

Digital stagebox connectionNo

EthernetNo

HotspotNo

Multitrack RecordYes

Special Features18×18 USB Audio Interface, MicroSD Card Slot; 16 Track Recording / 2 Track Playback, HDMI

Soundcard interfaceUSB-B

integratated Player/Rec via USB/SDstereo

Recorder FormatWAV/MP3

RTANo

FX Processor2

31 Band EQ0

Matrix0

DCA/VCA Groups0

MIDI InterfaceNo

Sample rate96 kHz

Separate Personal Monitor systemNo

Expansion Card slots0

Digital ADATNo

Digital SPDIFNo

Digital AES3/ASESEBNo

Digital MADINo

Digital DanteNo

CaseNo

19″ RackmountOptional

Height96 mm

Width335 mm

Depth319 mm

Weight4,66 kg
